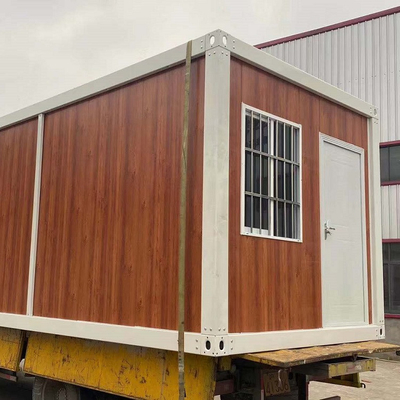

Modern 20 foot 40 foot container homes are assembled with miniature prefab modular and prefab container homes

1.0 unit
MOQ
Modern 20 foot 40 foot container homes are assembled with miniature prefab modular and prefab container homes
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: NONE
After-sale Service: Online technical support, Return and Replacement
Project Solution Capability: 3D model design, graphic design, total solution for projects
Application: Office Building
Model Number: JRMH-12
Use: Carport, Hotel, House, Kiosk,Booth, Office, Other, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Product Type: Container Houses
Design Style: Modern
Basis informatie
Model Number: JRMH-12
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 2000 Unit/Units per Month
Productomschrijving
Product Description



Functional features:

The components required for prefabricated houses are generally produced in the factory workshop, not subject to seasonal restrictions. The combination and installation of components on site can reduce the workload, reduce the wet operation volume, shorten the construction period, save manpower and material resources, reduce the construction cost and improve the work efficiency.



Design period:10Years

Wind resistance:0.50kN/m2

Sound insulation performance:Sound insulation loss≥20dB

Fire performance: A

Waterproof performance:Free drainage of girders on both sides

Seismic performance:8Grade

Ground live load:2.0kN/m2

Roof live load:1.0kN/m2

1

Top frame

Top long beam:2.3mm Galvanized beam,Top frame height:160mm, 5630mm

Top short beam:2.0mm Galvanized beam,Top frame height:160mm, 2680mm

Bottom frame

Bottom long beam:2.3mm Galvanized beam,Top frame height:160mm, 5630mm

Bottom short beam:2.0mm Galvanized beam,Top frame height:160mm, 2680mm

Column

Column:2.3mm Galvanized column 160mm*160mm, 2480mm

Bolt:High strength carriage bolt

Cornhead

160mm*160mm,wall thickness:4.0mm

2

Spray paint

Electrostatic spraying, plastic spraying, no fading for 5 years

3

Side stiffener

C80Section steel thickness:1.4mm , 2480mm

4

Pressing plate groove

Profile thickness:1.0mm 5730mm

Profile thickness:1.0mm 2790mm

5

Square management system

Chassis purlin

50*100 Galvanized square pipe,thickness:1.2mm, 2990mm

20*40 Galvanized square pipe, thickness:1.2mm, 2780mm

Top purlin

50*50 Galvanized square pipe, thickness:1.4mm, 2790mm

40*80 Galvanized square pipe, thickness:1.0mm, 1880mm

40*60 Galvanized square pipe, thickness:1.0mm, 1880mm

Door post

20*40 Galvanized square pipe, thickness:1.2mm, 2560mm

6

Wallboard

two-sided:0.3 50series 950 rock wool 50kg/m3

7

Steel door

925*1970 Integrated framed door (handle lock),steel plate0.3mm

8

Window

Aluminum alloy window with anti-theft, single glass,925*1200mm

9

Floor

15mm Cement sanding board,1147mm*2795mm Two year warranty

10

Roofing tile

980Roof tile,thickness:0.40mm, 2950mm

11

Ceiling tile

980Ceiling tile,thickness:0.22mm, 2790mm

12

Insulation cotton

50mm Glass fiber insulation cotton

13

Interior decoration

Color steel inner corner line,4 branches of superior internal angle,Four internal angles

14

Auxiliary materials

standard Including all screws,Structural adhesive etc.

15

Circuit

On demand customization




Company Information

ABOUT

Located in Zhenze Town, Wujiang Jiarun steel frame and color board movable house factory is located in Zhenze Town, Wujiang City. It is a professional manufacturer integrating the production, sales, installation and after-sales service of color steel sandwich panel, container activity room, light steel framework and other complete products. Our factory has advanced color sandwich panel production line, C-section steel cold rolling mill, and many professional and technical personnel. To provide customers with high-quality mobile room products and perfect service.The movable house is a kind of environment-friendly and economical movable house with light steel

as skeleton, sandwich panel as enclosure material, standard modulus series for space combination, and bolt connection for components. It can be assembled and disassembled conveniently and quickly. Scope of application: Engineering Headquarters, temporary offices, engineering camp dormitories, emergency hospital, outdoor camp and other light-weight houses. Can be designed and installed according to customer needs - quality comes from professional, professional cast classic! We will make progress hand in hand with you with first-class quality, first-class service and first-class speed to build a brilliant future together!

READ MORE →
Office
Our Advantages





1,The assembly is convenient and fast



2,We have rich manufacturing experience



3,Have a first-class quality service system



4,Affordable price and good quality

Workshop


Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

FAQ

1) Are you a factory or a trading company?

We are a manufacturer with more than ten years of manufacturing experience.

2) Is it easy to install?

Our products are easy to install, we will provide you with detailed installation guide.
